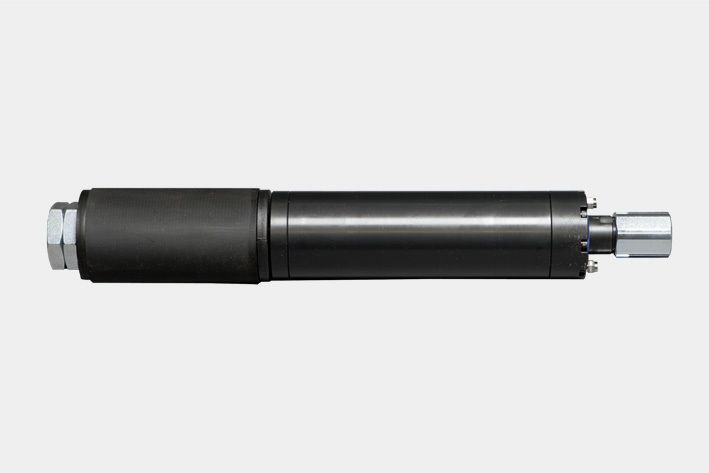

Hydraulic single packer HPE 88
borehole-Ø 88 - 96 mm

• acrylate gel
• 1C injection resin
• silicate resin
• 2C injection resin
• cement suspension
• 2C polyurethane

Type	HPE 88
Clamping rubber	Ø 85 x 150 mm
Clamping rubber (clamped)	Ø 98 mm
Borehole Ø min.-max.	88-96 mm
Length total	553 mm
Connection material hose	internal thread G1"
Hydraulic connection	2 x internal thread M8x1
Max. working pressure	250 bar
Clampng cylinder	double-acting

The hydraulic single packer is mainly used for injection, e.g. with sleeve tubes. The hydraulic single packer can be inserted easily into the sleeve tubes. Reliable sealing will be achieved in clamped position. By the simple and sure application an effective injection will be enabled.
